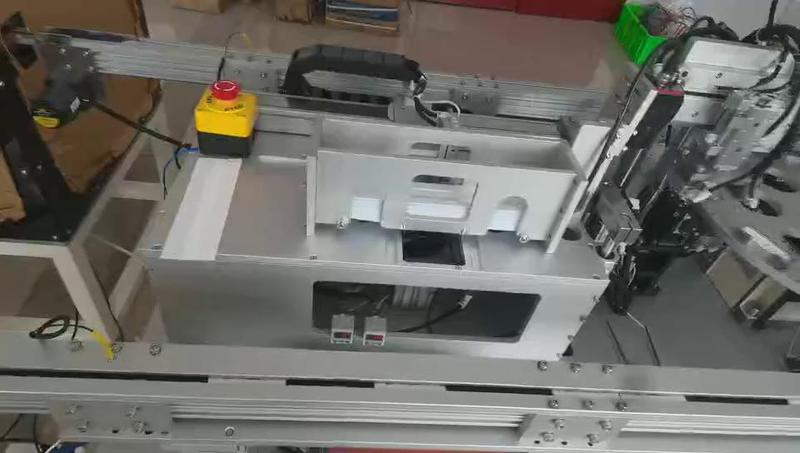

Auto cutting machine for fast test strips
Auto cutting machine for fast test strips
Auto cutting machine for fast test strips
- Detail
- Parameters
| Function: | ||||||
| 1.Automatically supply the lower shells | ||||||
| 2.Automatically supply the backplane | ||||||
| 3.Automatically detect the direction of the lower shells and adjust accordingly | ||||||
| 4.Automatically detect the bad marks on backplanes and remove them | ||||||
| 5.Automatically cutting the strips and put them into the shells | ||||||
| 6.Automatically supply the upper shells | ||||||
| 7.Automatically detect the direction of the upper shells and adjust accordingly | ||||||
| 8.Automatically detect whether there is a test strip installed in shell | ||||||
| 9.Automatically attach the upper shell and press | ||||||
| Elements standard | ||||||
| Track part：Hard chromium plating on 45 steel surface or Aluminum alloy anodizing and sandblasting | ||||||
| Important part:Vacuum Heat-treatment SKD11 or SKH9 or Tungsten steel | ||||||
| Pneumatic part: Airtac and SMC | ||||||
| PLC：Omron | ||||||
| Standard part:MISUMI or HIWIN | ||||||
| Technical data: | ||||||
| 1.Model type：Fully enclosed | ||||||
| 2.Control and screen：PLC control and touch screen | ||||||
| 3.Capacity：more than 2200/hour | ||||||
| 4.Activation：95% | ||||||
| 5.Rejection rate:<0.3% | ||||||
| 6. Bad strips detection rate：100% | ||||||
| 7.Cutting precision：±0.05mm | ||||||
| 8.Operator：One person |
Model
HGS3001
Size
customized
Weight
1000kg
Function
automatic cutting and assembling cassettes
Precision
±0.05mm
